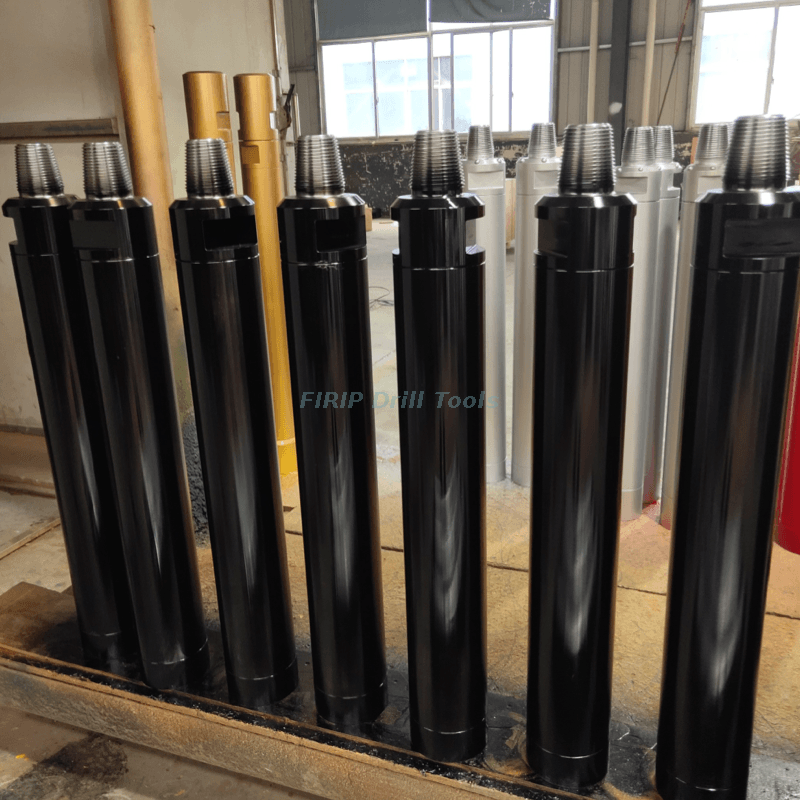

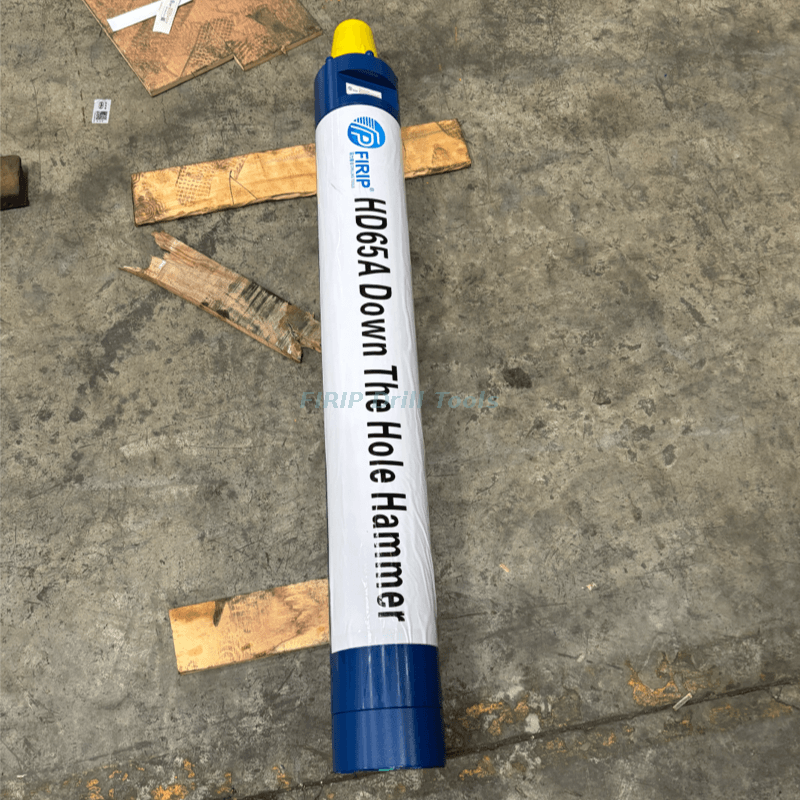

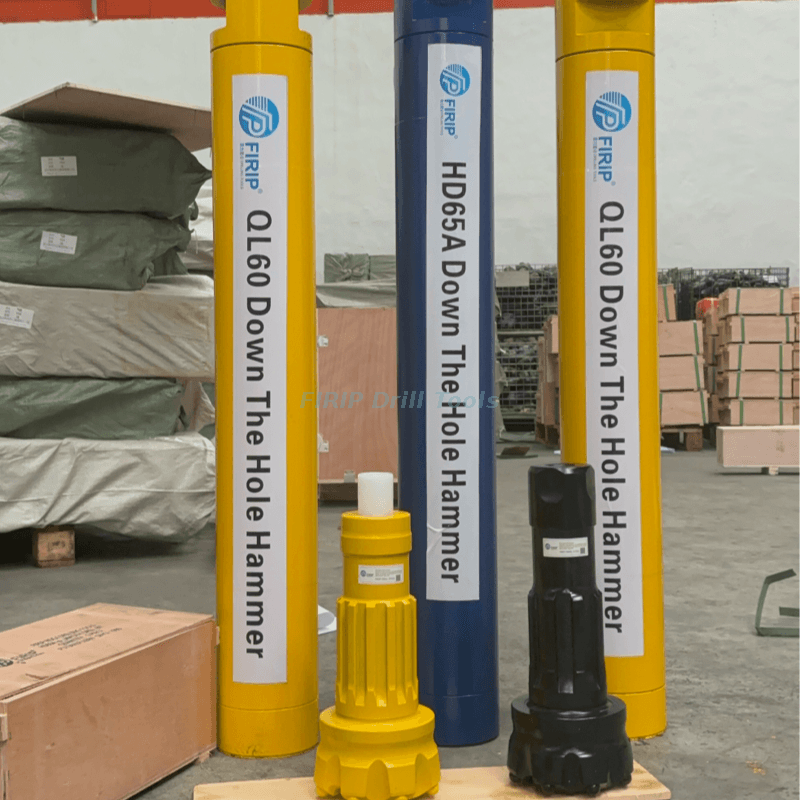

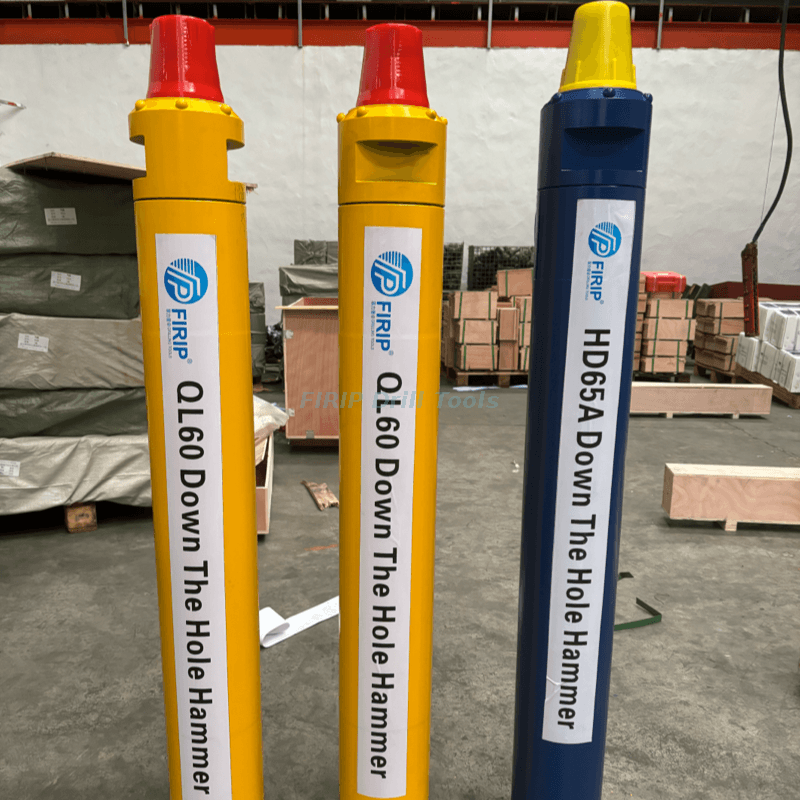

High Air Pressure DTH (Down-The-Hole) Hammer

Using the latest rock drilling theory, optimizing the inside structure and the size of the air distribution, to make the DTH Hammer obtain the optimal energy transfer and make it achieve faster drilling speed and lower air consumption.

For such projects as the drill bit break, retrieving very difficult, we specially designed a safe and reliable anti-shedding device for the bit.

The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.

The top sub and the drive chuck have special thread, which can achieve an easier disassemble.

Is there a minimum order quantity (MOQ)?

Yes, the minimum is 5 units.

Do you accept pre-order testing?

Yes; however, the customer is responsible for the cost of samples and shipping fees. The minimum order for samples is 5 units.

Do you accept customization?

Yes; this requires either technical drawings or physical samples.

Can colors and logos be customized?

Yes. If no specific requirements are provided, the standard color is black. Laser engraving for logos is available for orders of 10 units or more.

What is the typical lead time?

We maintain ample stock, so the standard lead time is typically 2 days. In the event that items are out of stock, batch production requires 10–15 days.

Do you hold any relevant quality certifications?

Yes, we hold both BV and CE certifications.

What is the different between low and high air pressure hammer?

The primary difference between low and high air pressure hammers lies in their impact force, operating efficiency, and the type of rock they are designed to penetrate.
