Product Advantage
Cost-Effective: The reduced demand for compressed air translates directly into lower fuel consumption for the air compressor. **High Efficiency in Specific Geological Conditions: In soft to medium-hard rock formations, it delivers powerful impact energy while consuming minimal energy.
Simple Structure:Typically features a valveless air distribution system or a single-piston design, thereby enhancing equipment reliability and simplifying maintenance procedures. **Reduced Vibration and Noise:Provides a smoother drilling experience, which helps mitigate the risk of borehole wall collapse.
Extended Service Life:Components are typically reinforced through heat treatment processes to maximize durability. Common Application Areas:Water Well Drilling:** Widely utilized in the drilling of small-diameter water wells and geothermal wells. Mining and Quarrying:Employed for blast hole drilling operations within mining environments.
Construction Engineering:** Applied in foundation construction and anchoring projects. **Components and Technical Specifications:Type:Available in two design configurations: with or without a foot valve.
Specifications:The outer diameter typically ranges from 80 to 137 mm, making it suitable for drilling boreholes with diameters ranging from 85 to 178 mm.
Exhaust and Cuttings Discharge:Features an efficient central exhaust and cuttings discharge design, engineered to prevent the secondary crushing of rock cuttings.Material: Critical components undergo heat treatment reinforcement to enhance wear resistance.

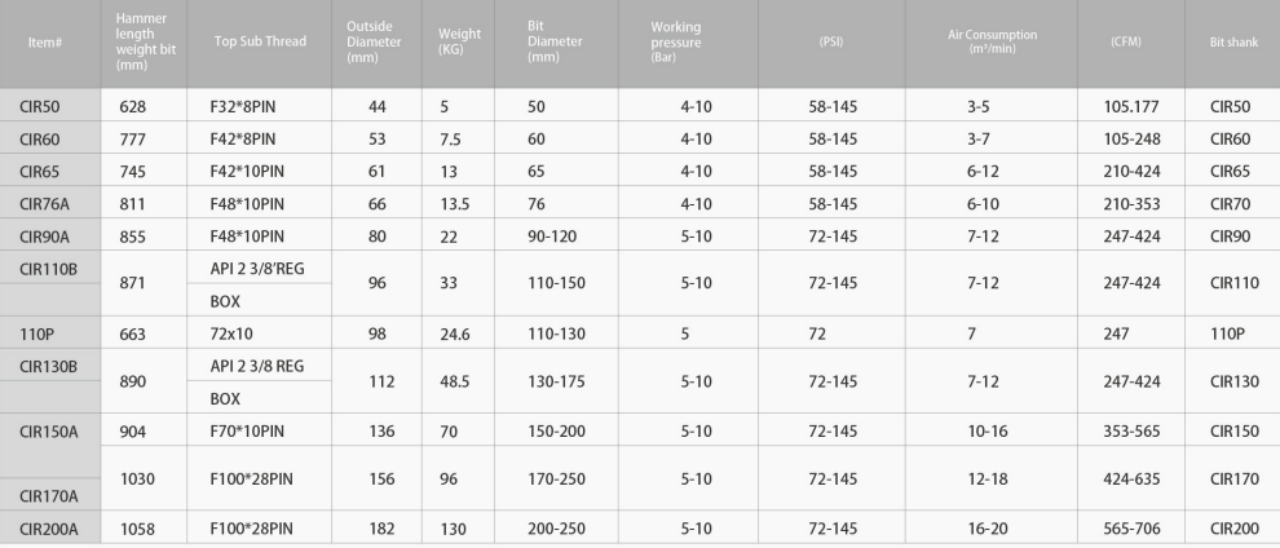

Technical Parameters
FAQ
Is there a minimum order quantity (MOQ)?
Yes, the minimum is 5 units.
Do you accept pre-order testing?
Yes; however, the customer is responsible for the cost of samples and shipping fees. The minimum order for samples is 5 units.
Do you accept customization?
Yes; this requires either technical drawings or physical samples.
Can colors and logos be customized?
Yes. If no specific requirements are provided, the standard color is black. Laser engraving for logos is available for orders of 10 units or more.
What is the typical lead time?
We maintain ample stock, so the standard lead time is typically 2 days. In the event that items are out of stock, batch production requires 10–15 days.
Do you hold any relevant quality certifications?
Yes, we hold both BV and CE certifications.
